Reverse Osmosis Systems

Residential - 50 Gallons Per Day

Water is fed into a sediment cartridge for the removal of dirt, sediment, silt, etc. Water is then fed into a carbon cartridge filter for the removal of chlorine and odors. The water is then fed into the reverse osmosis membrane. Reverse osmosis is a scientific application where dissolved contaminants in water are removed by passing water under high pressure through a membrane. Pores in the reverse osmosis membrane are so small that only water molecules pass through. The contaminants are rejected and drained away to the sewer. The water then enters into a storage tank/ Once the water is dispensed through the faucet, the water passes through one final carbon polishing filter.


Eliminates:

  • Dissolved contaminants (Total dissolved solids)

Please Note:

Water must not contain any bacteria, iron or manganese. Hardness levels should not exceed 20 g.p.g.


System Includes:

  • Sediment prefilter
  • Carbon post filter
  • Reverse osmosis membrane
  • Storage tank
  • Shutoff valve
  • Inline post carbon filter
  • Optional (Booster pump for low pressure installations)

Options:

In-Line ultra-violet (eliminate 99.9% of bacteria)

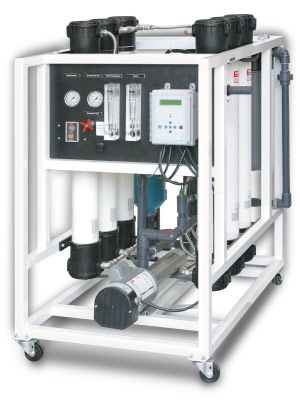

10,000 Gallons Per Day

  • Six Membranes & Housings @ 4″ x 40″ TFC HF (ULP)
  • Two 20″ Big Gray Pre-Filters @ 5 Microns, Sediment & Carbon Block
  • One 18″ FSI Bag Filter @ 10 Microns
  • One 11/2 HP* Electric Motor Stainless Steel Pump
  • Two Flow Meters @ 1: Product 1: Concentrate
  • One Low Pressure Switch
  • Four Pressure Gauges @ 2: 0-300 PSI 2: 0-160 PSI
  • One Computer Control, Low Pressure Cut Off Switch with Conductivity Meter (TDS), Rotrol S150
  • One Anti-Scaling Device 1″ NPT
  • Four Swivel Wheels with Brakes
  • Mounted on an Epoxy Powder Coated Aluminum Frame
  • Optional Anti-Scaling Device
  • Optional Auto-Flush, 3 Phase

* Additional charges may apply for 50Hz
* 3 HP Motor Used For Overseas

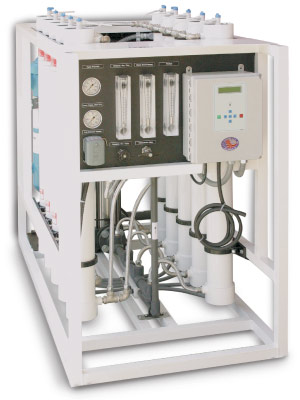

20,000 Gallons Per Day

  • Ten Membranes & Housings @ 4″ x 40″ TFC HF (ULP)
  • Two 20″ Big Gray Pre-Filters @ 5 Microns, Sediment & Carbon Block
  • One 18″ FSI Bag Filter @ 10 Microns
  • One 5 HP Electric Motor Stainless Steel Pump 160-220 PSI
  • Two Flow Meters @ 1: Product 1: Concentrate
  • One Electric Solenoid Valve 110 / 220 Volt with Manual Override
  • One Low Pressure Switch
  • Four Pressure Gauges @ 2: 0-300 PSI 2: 0-160 PSI
  • One Computer Control with Conductivity Meter (TDS), Rotrol 1
  • One Anti-Scaling Device 1 1/4″ NPT
  • Four Swivel Wheels with Brakes
  • Mounted on an Epoxy Powder Coated Aluminum Frame
  • Auto-Flush, 3 Phase
  • Optional Stainless Steel Housings (pictured)

* Additional charges may apply for 50Hz


30,000 Gallons Per Day

  • Twenty Membranes @ 4″ x 40″ TFC HF (ULP)
  • Ten Membrane Housings (Double) 4″ x 80″
  • One Bag Filter (Hayward) @ 10 Microns
  • One 5 – 7 HP Electric Motor Stainless Steel Pump 160-220 PSI
  • Two Flow Meters @ 1: Product 1: Concentrate
  • One Electric Solenoid Valve 110 / 220 Volt with Manual Override
  • One Low Pressure Switch
  • One Chemical Injection Feed System 30 Gallons
  • Four Pressure Gauges @ 2: 0-300 PSI 2: 0-160 PSI
  • One Computer Control with Conductivity Meter (TDS), Rotrol 1
  • One Anti-Scaling Device 1 1/4″ NPT
  • Four Swivel Wheels with Brakes
  • Mounted on an Epoxy Powder Coated Aluminum Frame
  • Optional Auto-Flush

* Additional charges may apply for 50Hz

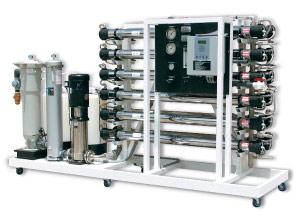

40,000 Gallons Per Day

  • Twenty-Four Membranes @ 4″ x 40″ TFC HF (ULP)
  • Twelve Membrane Housings (Double) 4″ x 80″
  • One Bag Filter (Hayward) @ 10 Microns
  • One 5 – 7 HP Electric Motor Stainless Steel Pump 160-220 PSI
  • Two Flow Meters @ 1: Product 1: Concentrate
  • One Electric Solenoid Valve 110 / 220 Volt with Manual Override
  • One Low Pressure Switch
  • Dual Chemical Injection Feed System 30 Gallons
  • Four Pressure Gauges @ 2: 0-300 PSI 2: 0-160 PSI
  • One Computer Control with Conductivity Meter (TDS), Rotrol 1
  • One Anti-Scaling Device 1 1/4″ NPT
  • Four Swivel Wheels with Brakes
  • Mounted on an Epoxy Powder Coated Aluminum Frame
  • Optional Auto-Flush

* Additional charges may apply for 50Hz
